LOD is a structured way to define how much information (both graphical and non-graphical) a model element contains. It represents how much detail and reliability a model element has at different project stages for better collaboration among architects, engineers, contractors, and owners.
Evolution and History of LOD
Origin of the LOD Concept
In the early 2000s, as BIM tools like Revit, ArchiCAD, and Tekla were gaining traction, everyone was modeling things—but no one knew how developed or reliable a modeled element was. A duct in a BIM model might look realistic but have no size or system data. LOD was born to fix this communication gap.
The AIA’s First LOD Framework (2008)
The American Institute of Architects (AIA) introduced the first formal LOD definitions in its AIA E202-2008 Building Information Modeling Protocol Exhibit. The standards introduced LODs 100 to 500, setting the foundation for industry-wide understanding. It provided a structured way to define how detailed a BIM element should be at each project phase.
This standard helped define:
Who is responsible for which elements.
What level of detail is expected.
When in the project timeline.
BIMForum & LOD Specification (2013 – Present)
In 2013, BIM Forum, a group of AEC professionals in the U.S., released the LOD Specification with a comprehensive document. It became the most widely adopted LOD guide internationally, especially in the U.S.
Global Adaptation and Standards (2015 – Present)
Different countries began adapting LOD to local standards. Some notable efforts:
UK: Adopted the Level of Definition concept, dividing it into
Level of Detail (geometric)
Level of Information (data)
Integrated into the UK BIM Framework and PAS 1192 series.
ISO 19650 (2018): The international standard for BIM collaboration didn’t use “LOD” directly but supported similar concepts like the Level of Information Need, emphasizing that LOD must be purpose-driven and clearly defined.
India, Singapore, Australia, and others: Customized LOD frameworks for public works, infrastructure, and digital twins.
What Does LOD Signify in BIM?
LOD defines the development stage of a model element from both a geometric and informational perspective. It answers two questions:
- How detailed is the object?
- How reliable is the information it carries?
- So, LOD signifies both:
- The graphical representation (how something looks)
- The informational richness (what you can trust it to do or represent)
Example: A window in a schematic model (LOD 100) may only show location, while at LOD 400, it includes frame type, glass specifications, and fabrication details.
Level of Detail vs. Level of Development
- The level of detail refers to the graphical representation.
- Level of Development combines the detail and the reliability of data for decision-making.
Misconception: A high-detail 3D object (like a fancy-looking chair) doesn’t mean it’s usable for procurement if it lacks specifications like size, material, and supplier.
Why LOD Is Crucial ?
- Ensures clarity in contracts and project deliverables
- Facilitates accurate cost estimation, scheduling, and prefabrication
- Prevents scope creep and responsibility conflicts
Evolution Over Time
Before LOD was introduced, Building Information Modeling was used mostly for 3D visualization and clash detection. While teams could model objects in high visual detail, there was no common framework. This gives rise to the following problems:
- How accurate or trustworthy a modeled object was.
- What decisions could be made based on that object?
- Who was responsible for developing it?
- A structural engineer might assume a modeled pipe was final and avoid that space, but the MEP team might still work on it.
This lack of standardization led to
- Miscommunication
- Inconsistent deliverables
- Costly rework on-site
LOD has evolved to also include non-graphical information such as performance specs, scheduling, and cost.
Example: A wall at LOD 300 includes precise dimensions and location, but at LOD 500, it also includes as-built information like manufacturer, fire rating, and maintenance details.
LOD Specifications and Classifications

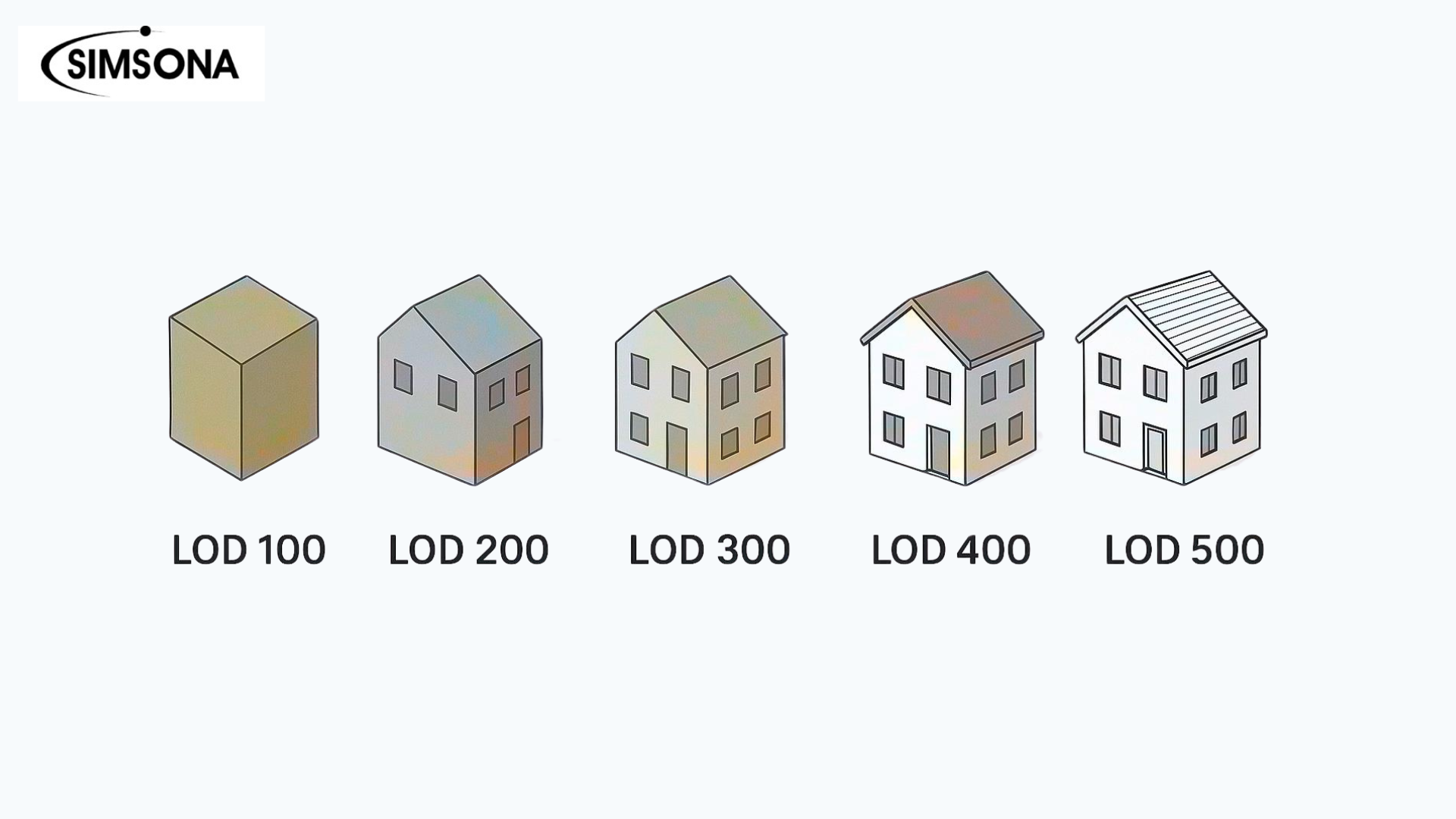

LOD 100 – Conceptual
It’s the most basic level of development in a BIM model. At this level, elements are symbolic but have no accurate shape, size, location, or orientation. Such models, symbolically or graphically generalized, are ideal for conceptual exploration and rough planning only.
Example: A building’s shape is shown as a simple block without windows or doors.
Use of LOD 100
The architect uses a BIM tool to create a simple block model
The planner uses this model to estimate total buildable area
The developer reviews costs based on the average price per square foot
LOD 200 – Approximate Geometry
LOD 200 is where your BIM model starts transitioning from concept to design reality. The elements have generic geometry and approximate location with basic design intent. However, the model is not accurate enough for fabrication or installation.
Example: A wall is shown at approximate thickness with an undefined material.
LOD 200 Usage:
- The architectural model shows general wall layouts, storefront areas, and corridors
- Structural engineers define grid spacing and typical framing strategy
- MEP consultants indicate HVAC system types and approximate duct routes
- Cost consultants generate early pricing models using rough BOQ (Bill of Quantities)
LOD 300 – Precise Geometry
LOD 300 refers to model elements that are accurately defined in terms of geometry, size, quantity, location, and orientation. At this level, model elements are dimensionally correct and spatially coordinated but not yet detailed enough for fabrication or shop drawing creation.
Example: Structural beams are placed with exact dimensions and support points for clash detection.
LOD 300 Usage:
Structural engineer defines exact beam and column sizes and locations
MEP team models ductwork and piping with true diameters, avoiding clashes
Architect finalizes wall types and window schedules
Contractors prepare accurate quantity takeoffs for bidding and logistics
The design team hosts BIM coordination meetings to resolve design issues
LOD 350 – Coordination Level
It’s a very critical level in complex BIM coordination where interfaces, supports, and connections between systems are modeled. Useful for detecting conflicts because it tells how it works together with the rest of the building.
Example: A mechanical duct includes hangers and is coordinated with structural framing to avoid conflicts.
LOD 350 Usage:
- Mechanical engineers model HVAC units with their support pads, vibration isolators, and hanger spacing
- Architects coordinate access panels in ceilings and walls for future maintenance
- Plumbers model wall penetrations and sleeves for prefab wall sections
- Clash detection includes maintenance clearance and serviceability
LOD 400 – Fabrication Level
LOD 400 refers to model elements that are modeled with sufficient detail and precision for fabrication and installation. This is the point where the model is used by fabricators, manufacturers, and installers to build and assemble the components off-site or on-site.
Real-World Use Case:
Project Type: Modular hotel construction
LOD 400 Usage:
Plumbing systems are prefabbed in racks modeled with exact pipe lengths, bends, and supports.
The steel fabricator produces direct-to-fab drawings from models for all floor beams.
Electrical trays and conduit paths are modeled with all bends, boxes, and fixings.
Ductwork is fabricated offsite using model-derived spool drawings
The site receives exact prefabricated elements and installs them according to model-driven layout plans
Example: A steel column includes bolt sizes, weld specifications, and fabrication IDs.
LOD 500 – As-Built
This is where BIM transitions from design and construction to operation and maintenance. All geometry, locations, specifications, and associated data are based on what was installed in the field, not just what was planned or fabricated.
Example: HVAC units modeled with serial numbers, warranty info, and service schedules.
LOD 500 Usage:
- The model is handed over to the facilities team and integrated with FM software.
- All HVAC, plumbing, lighting, and power systems have serial numbers, O&M manuals, and maintenance records linked in the model.
- Room sensors update the BIM model with live occupancy and temperature data.
- Renovation planning begins 3 years later using the same as-built BIM model, saving weeks of site surveys.
